Flow Transmitter

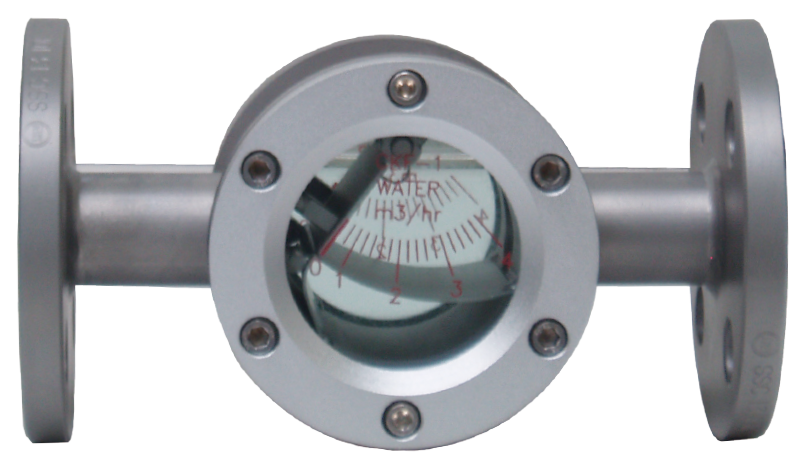

Flow switch and sight flowmeter_F850

F850

Description

It is flapper type sight glass and available for measuring flow rate through the both sides. It is suitable for direct visual inspection of liquid.

Specification

Process connection Flanged
Screwed
Size 10A ~ 300A
350A ~ 500A
Material 304SS
316SS
316L SS
Pressure rating STD. 10 kgf/cm²
Max. 60 kgf/cm²
Temperature rating STD. 120 °C
Max. 300 °C
Accuracy ±5.0 % of full scale
