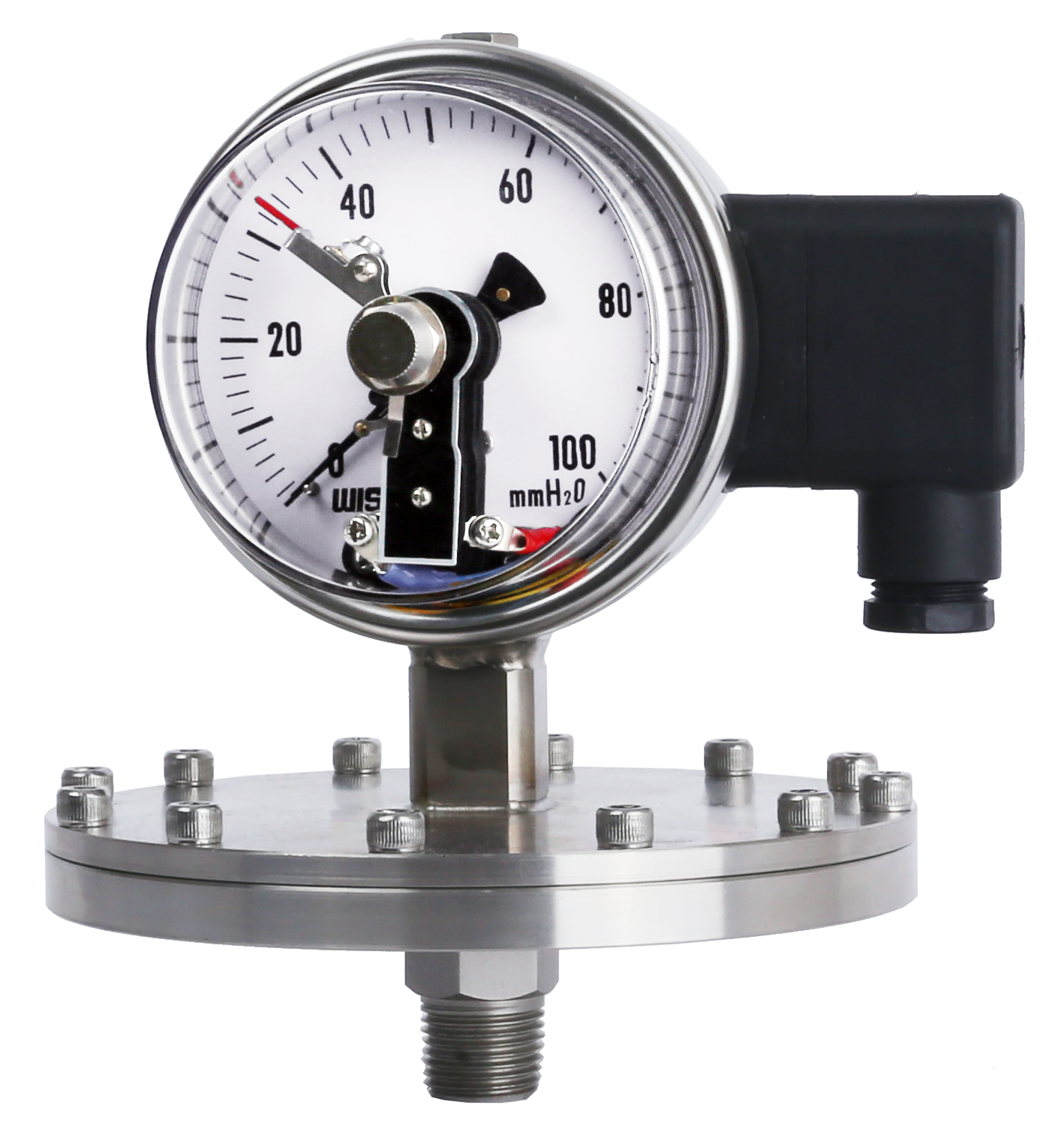

P570 series_Euro gauge Electrical contact type diaphragm pressure gauge

P570 series (P571, P572)

Service intended

P570 series are equipped with a specially designed dry-type diaphragm, and also equipped with the electrical contact block which allows all the combinations of contact to be used. The contact block is mounted on the dial, and the window is fitted with a knob for the external adjustment or the set point.

Nominal diameter 100 and 160 mm
Accuracy ±1.0 % of full scale
Scale range (MPa, kPa, bar) 0 ~1 kPa to 0 ~ 40 kPa (Flange 150 mm)
0 ~ 50 kPa to 0 ~ 2.5 MPa (Flange 100 mm)
Working pressure Steady : Full scale value
Fluctuating : 90 % of full scale value
Over range protection Overpressure safety 500% of full scale value, however Max. 4 MPa
Working temperature Ambient : -20 ~ 65 °C
Fluid : Max. 100 °C
Degree of protection EN60529/IEC529/IP67
Temperature effect Accuracy at temperature above and below the reference temperature (20 ℃) will be effected by approximately
±0.4 % per 10 ℃ of full scale

Standard features

Pressure connection and under flange Material : 304SS, 316SS, 316L SS
Upper flange (Gauge side) Material : 304SS, 316SS
Diaphragm material ≤40 kPa stainless steel (316Ti SS)
>40 kPa duratherm 600
Case Stainless steel (304SS)
Cover Stainless steel (304SS) Bayonet type
Window Safety glass : Only available with diameter 100 mm
Polycarbonate : 100 and 160 mm
Movement Stainless steel
Dial White aluminium with black graduations
Pointer Black painted aluminium alloy
Conduit connection M20 x 1.5
