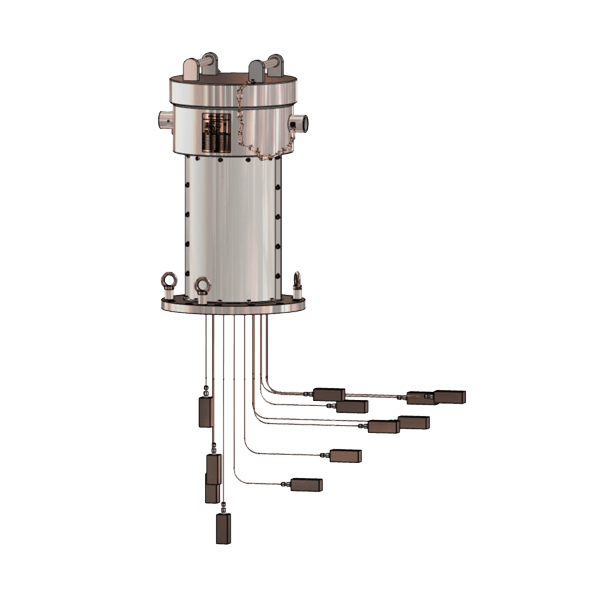

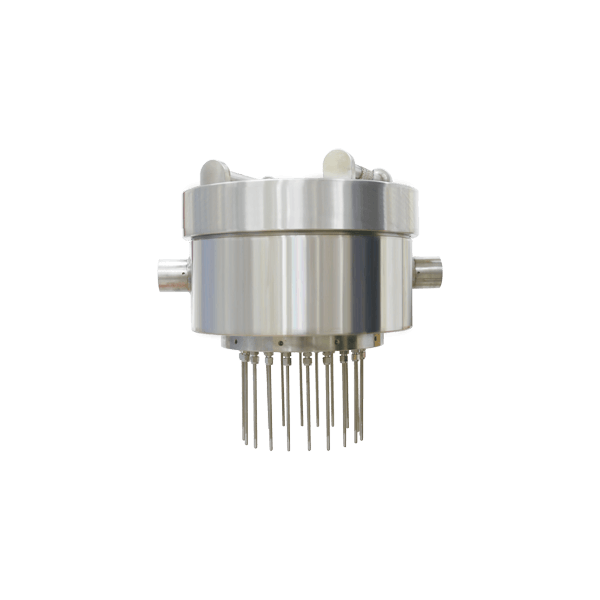

Cool-down and leak detector_R190 (RL series)

R190 (RL series)

Service intended

R190 series are explosion proof temperature sensors with a high accuracy and a high reliability for cryogenic industries such as LNG tank terminal and oxygen generator. The temperature sensors are available as RTD depending on the usage, and it can be designed according to user’s request. Furthermore, these sensors can be manufactured according to the requested specification of flange or thread for required measuring points.

Standard features

Junction box 316SS
Element Pt 100Ω at 0℃
Sheath material 316L SS
Sheath outer diameter 3.2, 4.8 and 6.4 mm
Temperature range -200 ~ 100 ℃
Maximum measuring points 15 points
Tolerances on temperature reading Class A : ± (0.15 + 0.002 l t l)
Class B : ± (0.3 + 0.005 l t l)
Certificates KCS Ex d IIC T6
Degree of protection EN60529/IEC529/IP56
EN60529/IEC529/IP66
