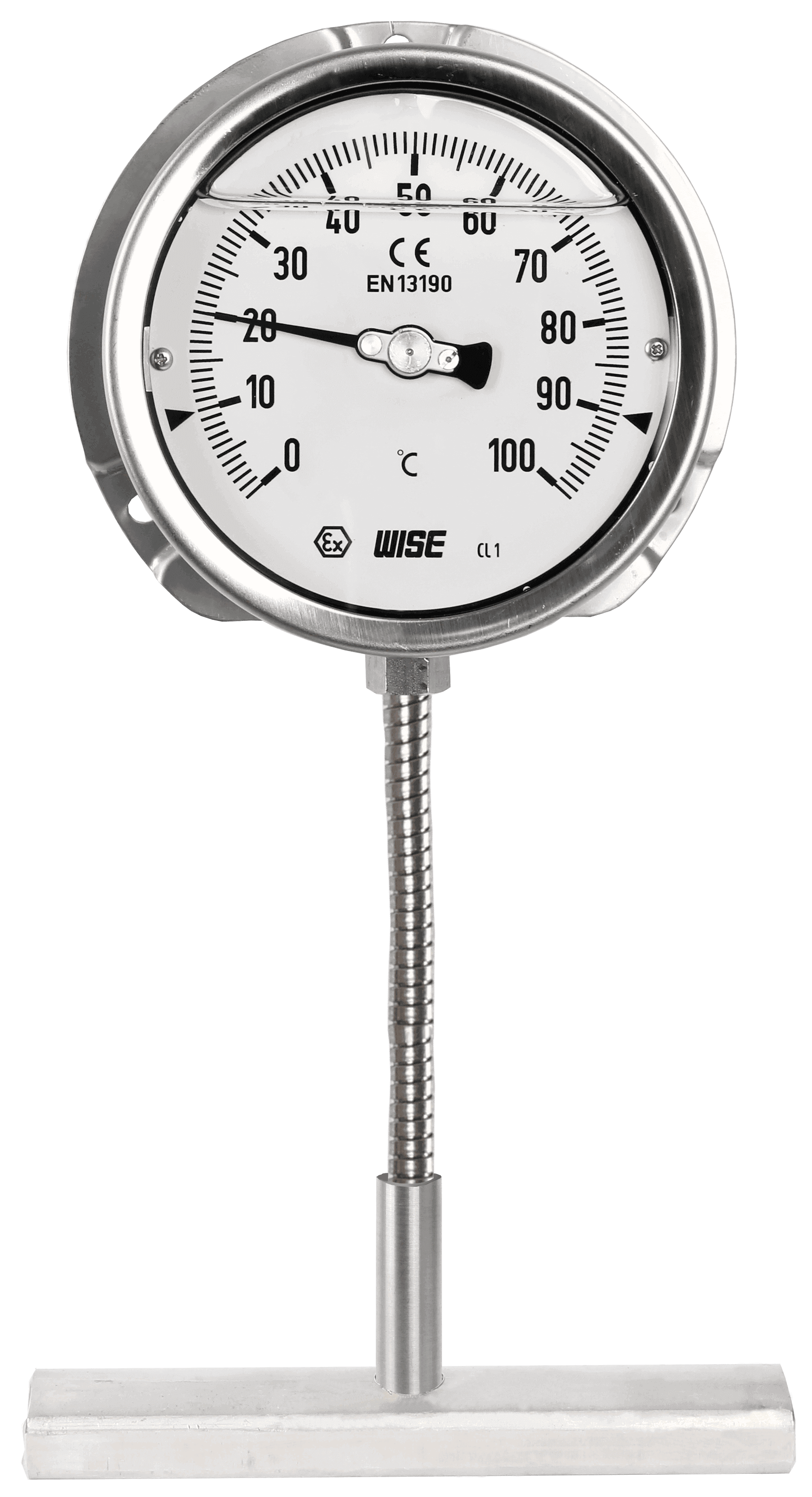

WISE CONTROL INC : T213_Remote reading thermometer with external mounting bracket on pipes and tanks

Service intended

Liquid filled thermometer is used for measuring temperature of various pipes and tanks external in all industries, operated in aggressive and non-aggressive environment. Linear dials and temperature compensate line assure an accurate temperature indication at varying ambient conditions.

Nominal diameter	100 and 150 mm
Accuracy	±2.0 % of full scale (Standard)
Measuring system (SAMA class ⅢB)	Organic gas : 0 ~ 200 °C Inert gas : -200 ~ 700 °C
Working range	Maximum scale value

Standard features

Location of stem and mounting	Bottom connection, surface, case mounting
Case	304SS
Cover	304SS
Capillary	Capillary : 1.6/0.2 mm, 316SS Armored tube : 6.5/4.5 mm, 304SS
Window	Tempered safety glass
Dial	White aluminium with black graduations
Pointer	Black painted aluminium alloy
Mounting bracket	120 x 22 x 12 (mm) 316SS
Filled fluid in case	Glycerin or silicone (Option)
Zero adjustment	Internal
Stem connection	Surface mounting
Option	±1.0 % of full scale
