WISE CONTROL INC : L300 Series_Magnetic float type level gauge

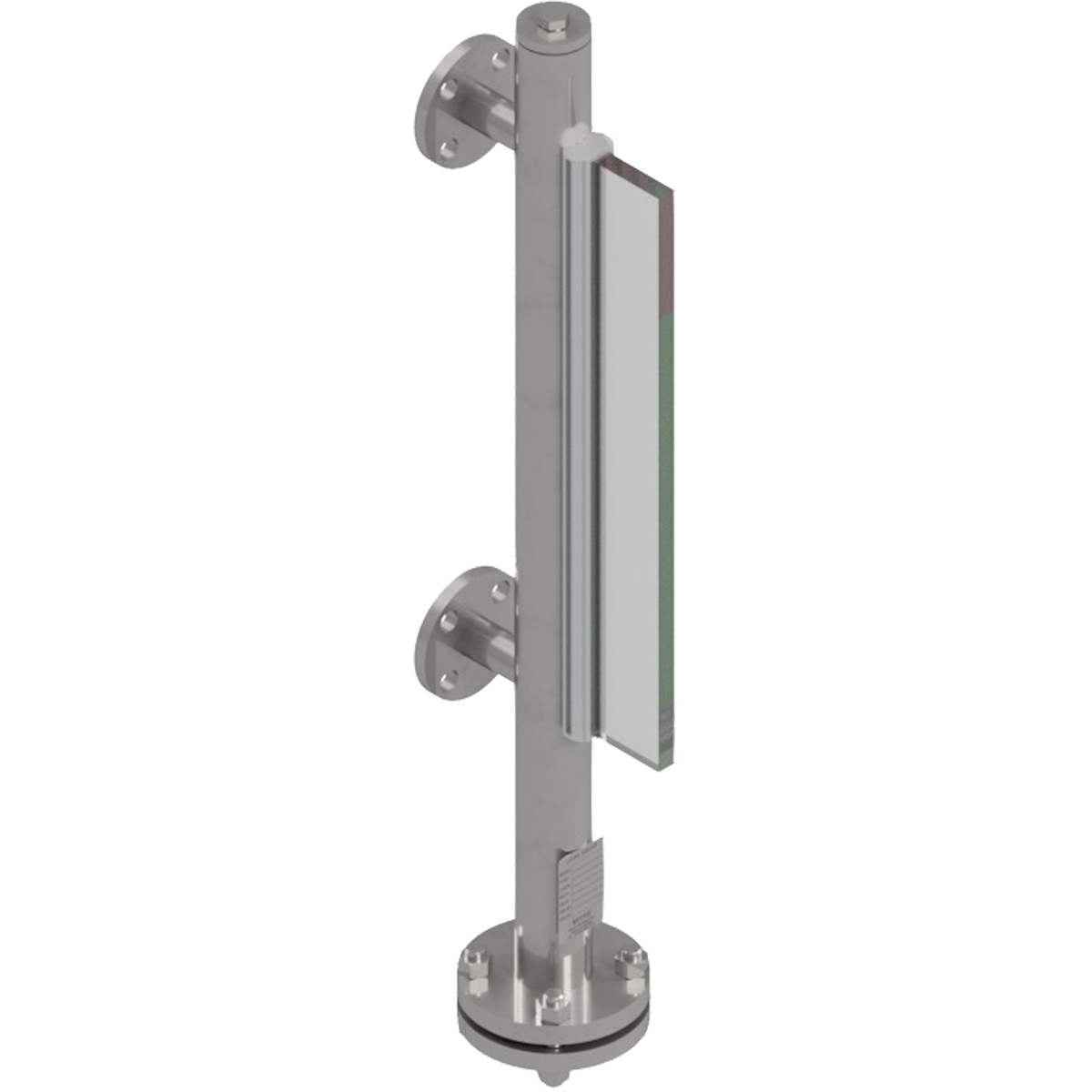

Model: L300

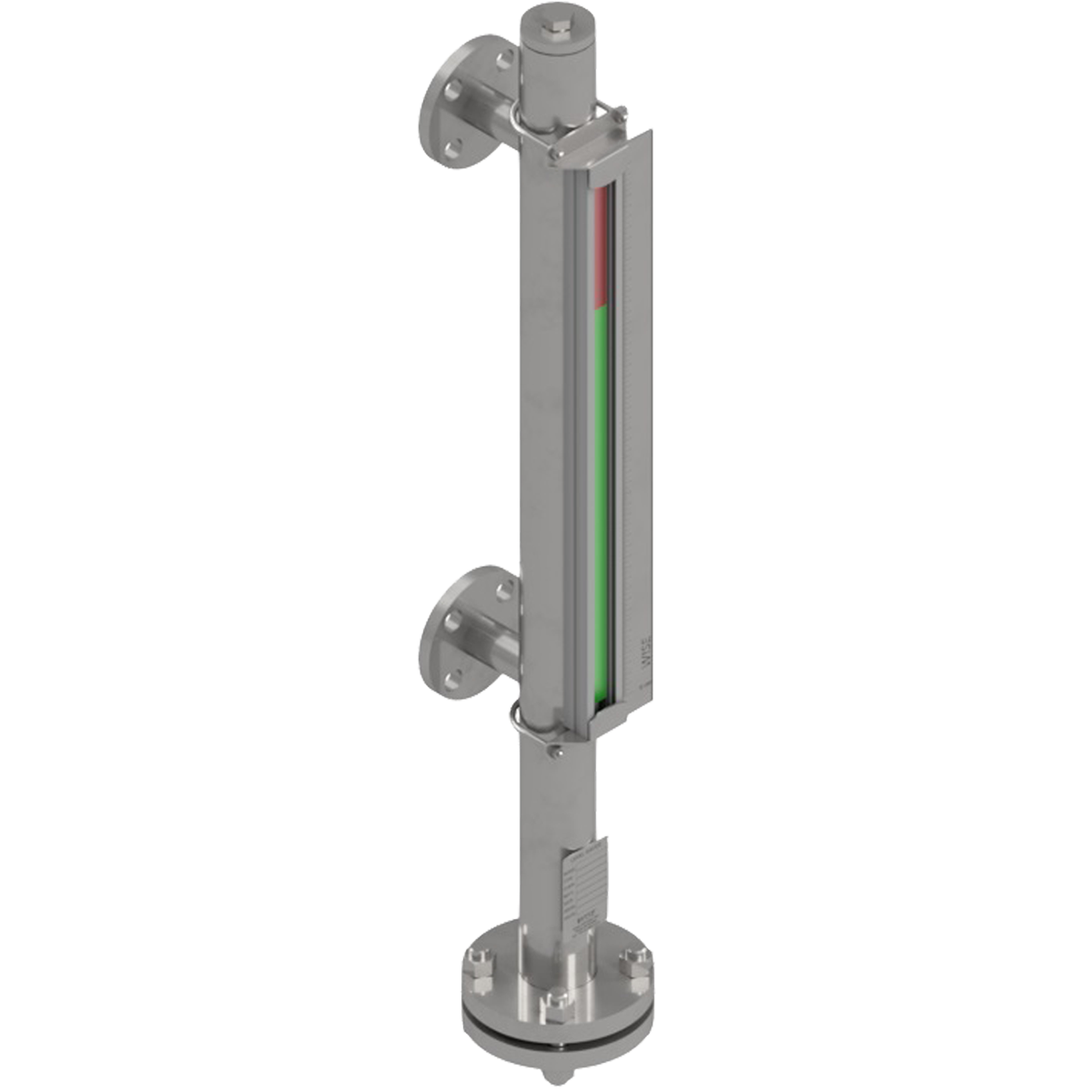

Model: L300 (NON FROST TYPE)

Standard Specification

Chamber material	Stainless steel Stainless steel with ETFE lining Non-Metallic ETC.
Float material	Titanium Teflon Titanium with ETFE Coating ETC.
Vessel connection	Flanged (1/2" to 3") Screw and socket weld (1/2" to 2")
Hook-up	Side-side
Option	• Scale plate - Unit: cm / mm / % / etc. • Non-frosting • Steam jacket • Level switch • Level transmitter • Drain / Vent - Needle valve - Gate valve - Globe valve - Nipple and cap - Plug • IP65 Indicator

Download

L300 Series_Magnetic float type level gauge
