Flow Transmitter

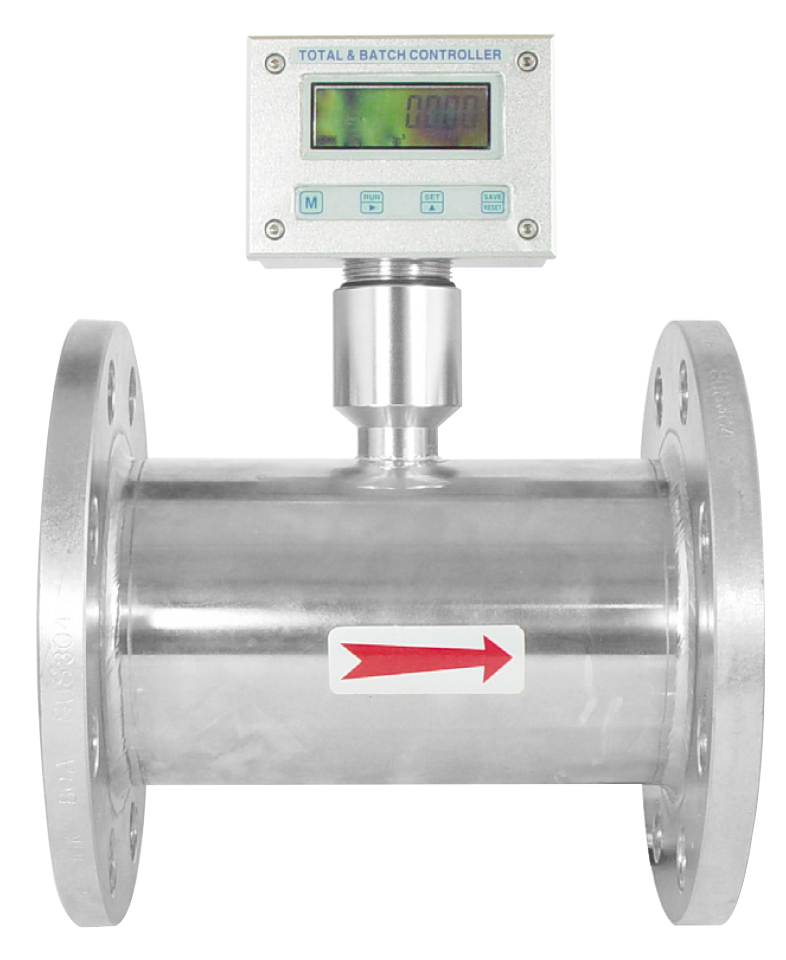

Turbine flowmeter_F902

F902

Description

It is 2 wire turbine flow transmitter specially used for various industrial application and operated by battery with life time, 3 ~ 4 years. The flowing media engages a vaned rotor causing it to rotate at an angular velocity proportional to flow rate.

Specification

Process connection Flanged
Screwed
Size 10A ~ 250A
Material 304SS
316SS
316L SS
Pressure rating STD. 10 kgf/cm²
Max. 350 kgf/cm² (Option)
Temperature rating STD. 120 °C
Max. 200 °C (Option)
Accuracy ±1.0 % of full scale
