: Manometer

Service intended

P960 series manometer is a pressure measuring instrument, and it measures the for calibration of all pressure instruments. It is suitable for measuring low and vacuum pressure.

Scale range

U type : 0 ~ ±100 to 0 ~ ±600 mm
Inclined type : 0 ~ 30, 60 and 150 mm
Wall type : 0 ~ 500, 1,000 and 1,500 mm

Standard features

Pressure connection	Stainless steel (304SS) tube connection for 8 mm
Tube	Material : Glass Outer diameter : 12 mm In diameter : 9.4 mm (P961) 5.0 mm (P962, P963, P964, P965)
Working temperature	Ambient : 15 ~ 25 ˚C Fluid : Max. 35 ˚C
Measuring liquid	Anti freezing liquid Water
Scale plate	White aluminium with stainless steel Black graduation 2 mm
Base plate	SCP2, Black painted Option : 304SS
Mounting	Surface mounting
Option	304SS, Black painted

Download

타이틀

P960 Series_Manometer

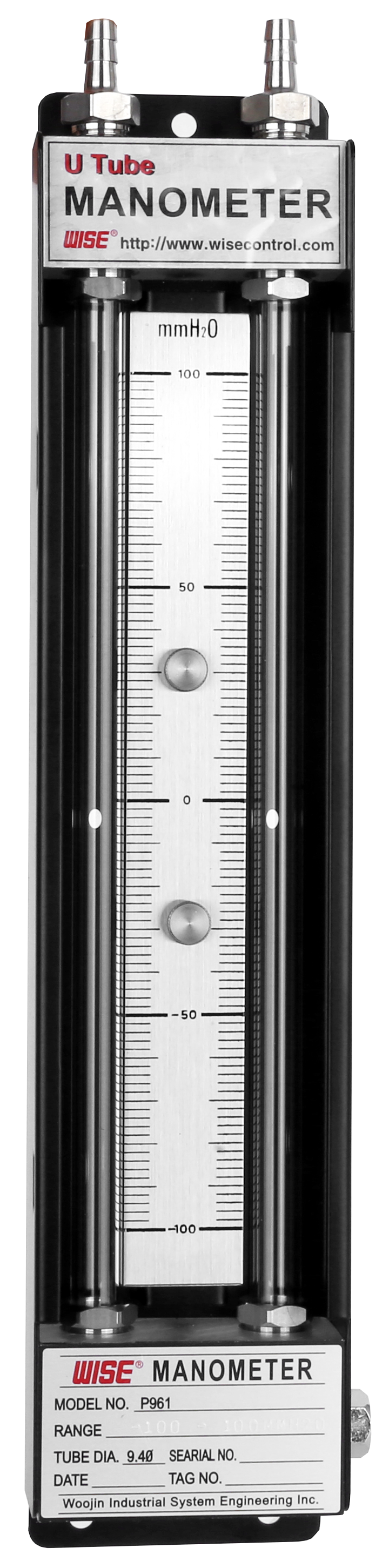

P961 Series - "U" type P962, P963, P964 Series - Inclined type P965 Series - Wall type
