Bourdon Tube

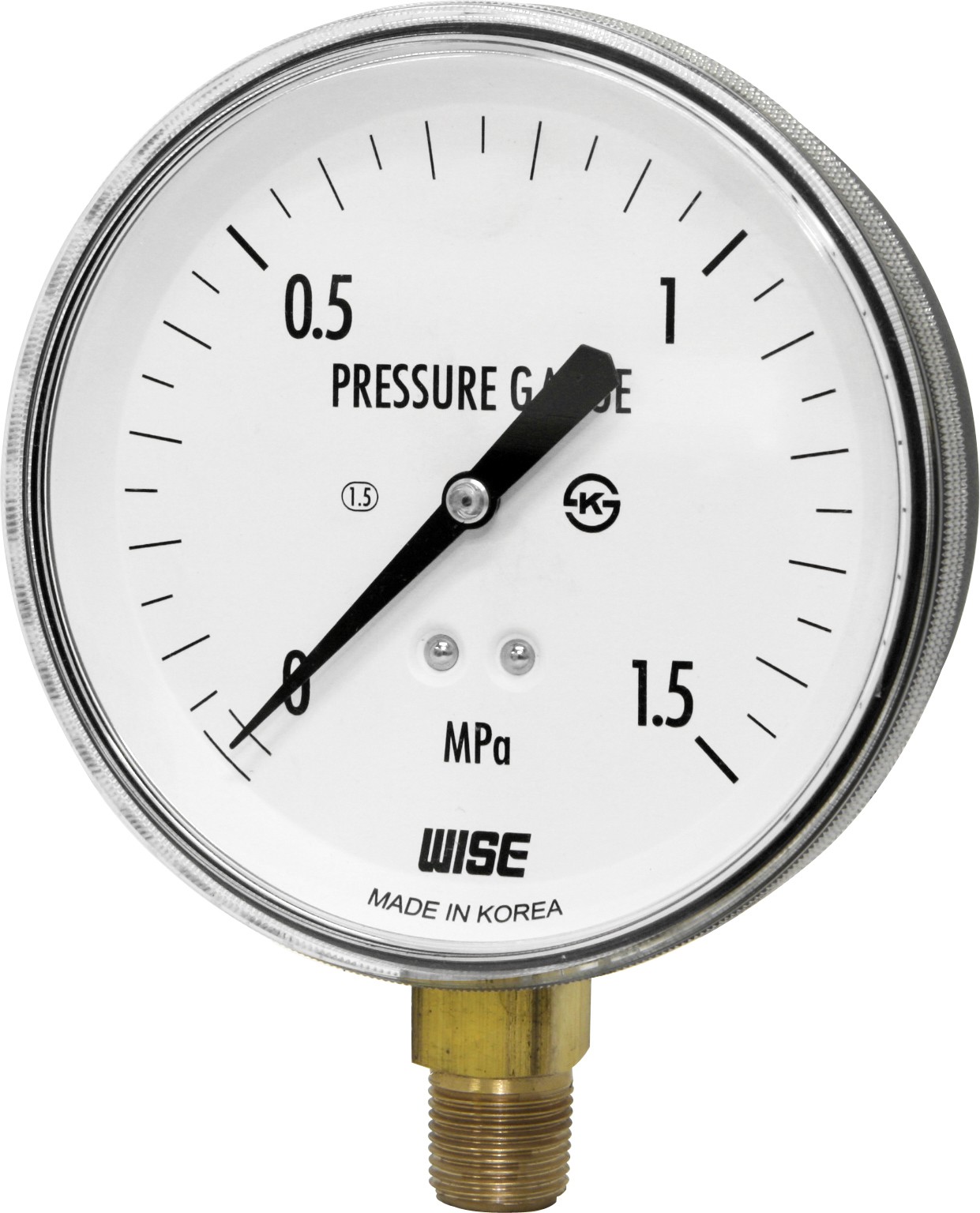

P140 Series_General purpose pressure gauge

P140 Series

Service intended

P140 series are designed to withstand a severe weather conditions and the rust under chemical or petrochemical circumstances allowing continuous exposure to the atmosphere.

Nominal diameter 60 and 100 mm
Accuracy 60 and 100 mm : ±1.5 % of full scale
Scale range (MPa, kPa, bar) 60 mm : -0.1 ~ 0 to 0 ~ 25 MPa
Working pressure Steady : 75 % of full scale
Over range protection : 130 % of full scale
Working temperature Ambient : -20 ~ 60 ℃
Fluid : Max. 60 °C
Temperature effect Accuracy at temperature above and below the reference temperature (20 ℃) will be effected by approximately
±0.4 % per 10 ℃ of full scale

Standard features

Pressure connection Brass
Element C type bourdon tube
60 and 100 mm : ≤10 MPa : Brass
                         ＞10 MPa : 316SS
Case Polycarbonate
Cover Polycarbonate
Movement Brass
Dial White aluminium with black graduations
Pointer Black painted aluminium alloy
Process connection 60 mm : ¼" PT, NPT and PF
100 mm : ⅜" PT, NPT and PF

© WISE Control Inc. All rights reserved. ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
