P110 Series_General service pressure gauge

P110 Series

Service intended

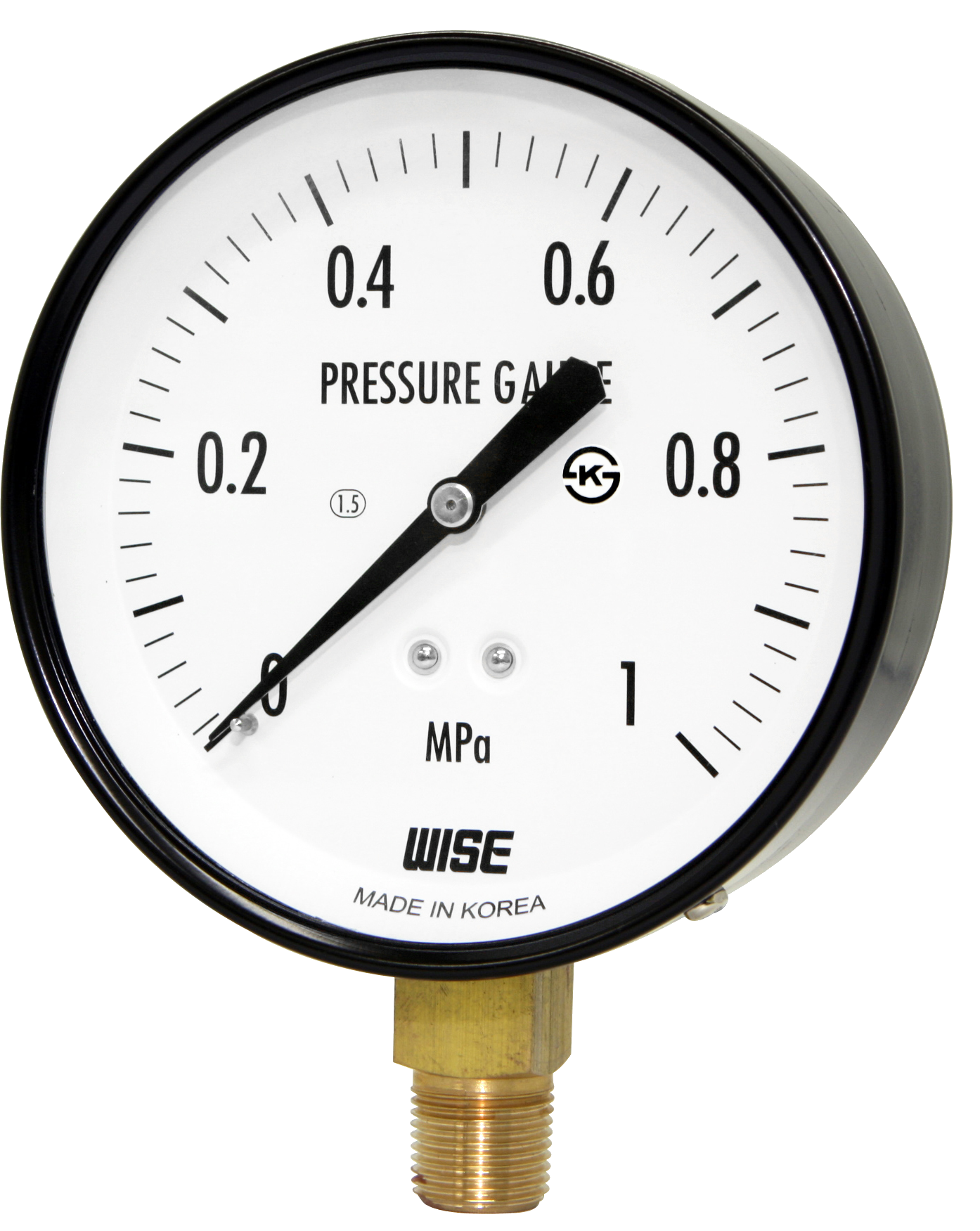

P110 series are a general service pressure gauge. P110 is a low cost and features high quality parts. It is suitable for a non-corrosive fluid. Air, oil, gas or water services are the most common applications.

Nominal diameter 40, 50, 60, 75, 100, 150 and 200 mm
Accuracy 40 mm : ±3.0 % of full scale
50, 60, 75, 100, 150 and 200 mm : ±1.5 % of full scale
Scale range (MPa, kPa, bar) 40 mm : 0 ~ 0.2 to 0 ~ 3.5 MPa
50 mm : 0 ~ 0.2 to 0 ~ 10 MPa
60 and 75 mm : -0.1 ~ 0 to 0 ~ 25 MPa
100 mm (New) : -0.1 ~ 0 to 0 ~ 35 MPa
100 and 150 mm : -0.1 ~ 0 to 0 ~ 100 MPa
200 mm : -0.1 ~ 0 to 0 ~ 35 MPa
Working temperature Ambient : -20 ~ 60 ℃
Fluid : Max. 60 ℃
Temperature effect Accuracy at temperature above and below the reference temperature (20 ℃) will be effected by approximately
±0.4 % per 10 ℃ of full scale

Standard features

Pressure connection Brass
Element 40 and 50 mm : Brass
60, 75 and 100 mm (New) : ≤10 MPa : Brass
                                        >10 MPa : 316SS
100, 150 and 200 mm : ≤7 MPa : Brass
                                  >7 MPa : 316SS
C type bourdon tube or helical bourdon tube
Case Black finished steel
Black finished aluminium (Diameter 200 mm)
Cover Black finished steel
Window Glass
Movement Brass
Dial White aluminium with black graduations
Pointer Black painted aluminium alloy
Process connection 40 mm : ⅛" PT, NPT and PF
50 mm : ¼", ⅛" PT, NPT and PF
60 mm : ¼" PT, NPT and PF
75 and 100 mm (New) : ⅜" PT, NPT and PF
100, 150 and 200 mm : ½", ⅜" PT, NPT and PF

© WISE Control Inc. All rights reserved. ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
