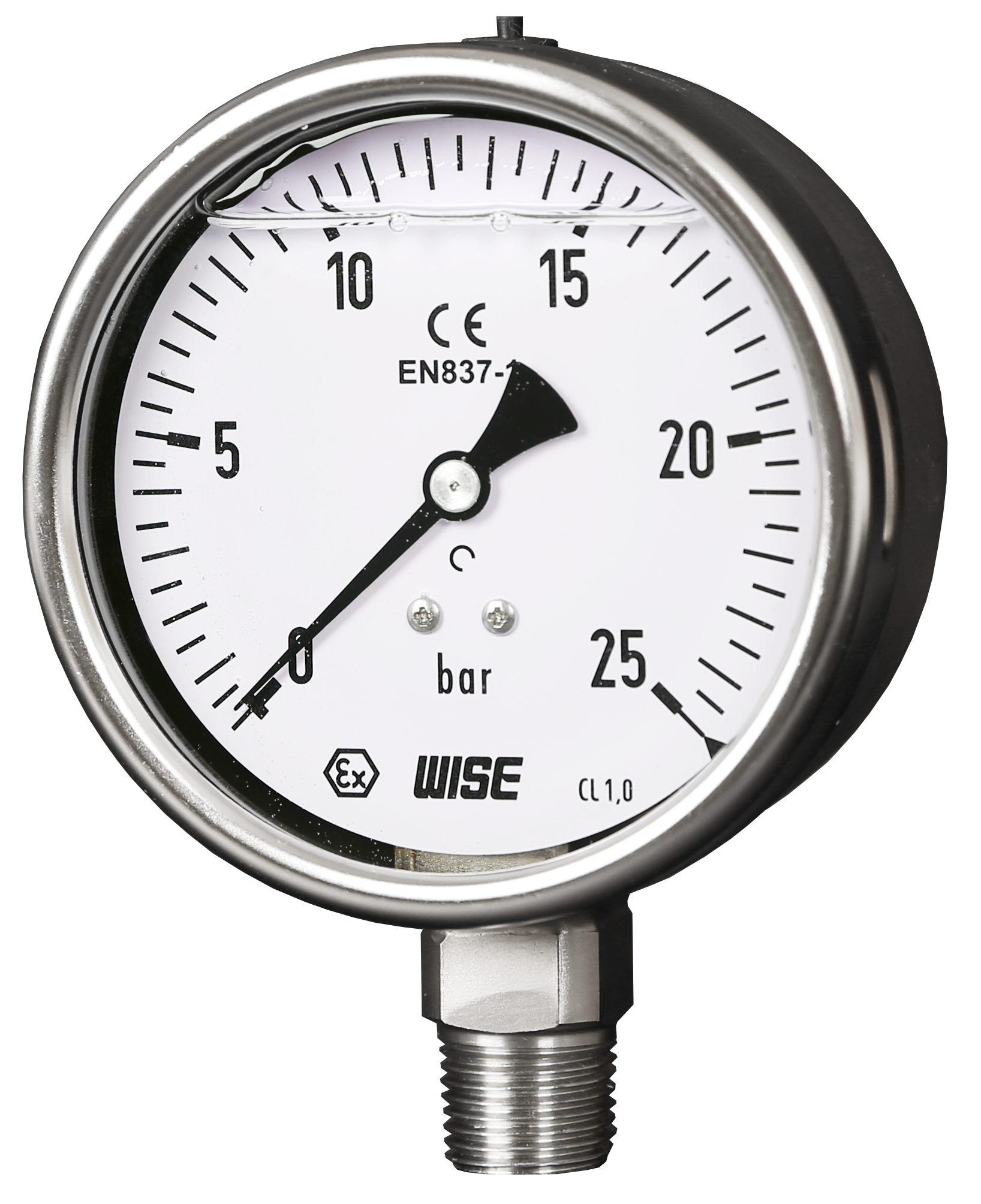

Euro gauge Liquid filled industrial pressure gauge_P258 series

P258 series

Service intended

P258 series are suitable for corrosive environments. Typical application includes : Chemical, petro-chemical, refining process, power generation, marine and food industry. The filled liquid absorbs vibration and pulsation.

Nominal diameter 63, 80, 100 and 160 mm
Accuracy P2582 (63 mm) and P2583 (80 mm) : ±1.6 % of full scale
P2584 (100 mm) and P2586 (160 mm) : ±0.5 % of full scale
±1.0 % of full scale
Scale range (MPa, kPa, bar) 63 and 80 mm : 0.1 ~ 0 to 0 ~ 100 MPa
100 and 160 mm : 0.1 ~ 0 to 0 ~ 200 MPa
Working pressure Steady : 75 % of full scale (63 and 80 mm)
             100 % of full scale (100 and 160 mm)
Over range protection : 130 % of full scale
Filling liquid Glycerin
Working temperature Ambient : -20 ~ 65 ℃ (With glycerin filling)
               -40 ~ 65 ℃ (With silicone filling)
Fluid : Max. 100 ℃ (With glycerin filling)
          Max. 100 ℃ (With silicone filling)
Degree of protection EN60529/IEC529/IP67
Temperature effect Accuracy at temperature above and below the reference temperature (20 ℃) will be effected by approximately
±0.4 % per 10 ℃ of full scale

Standard features

Pressure connection Stainless steel (316SS)
Element Stainless steel (316SS),
Model : P2584 (100 mm) and P2586 (160 mm)
<10 MPa : C type bourdon tube
≥10 MPa : Helical type bourdon tube
Model : P2582 (63 mm) and P2583 (80 mm)
<6 MPa : C type bourdon tube
≥6 MPa : Helical type bourdon tube
Blowout protection Back, Rubber disc for 80, 100 and 160 mm
Top, Rubber disc for 63 mm
Case Stainless steel (304SS)
Cover Stainless steel (304SS) Bayonet type
Window Laminated safety glass
Movement Stainless steel
Dial White aluminium with black graduations
Pointer Black painted aluminium alloy
Process connection 63 mm : ⅛", ¼" PT, NPT and PF
80 mm : ¼", ⅜" PT, NPT and PF
100 and 160 mm : ¼", ⅜", ½" PT, NPT and PF
Certificates ATEX Ex II GD c IIc TX
Pressure equipment directive (2014/68/EU)-Annex III Module H
Option
  • Zero adjustable pointer
    (Only available with diameter 100 and 160 mm)
  • Zero adjustment (External) : 100 and 160 mm
  • Pressure connection and element : Monel
    (Only available with diameter 100 and 160 mm)
  • Silicone filling
  • Maximum Pointer
    (Not applicable to under 3 bar, Only available with diameter 100 mm)
