Bourdon Tube

P359 Series_Safety pattern type pressure gauge Solid-front and turret style thermoplastic case

P359 Series

Service intended

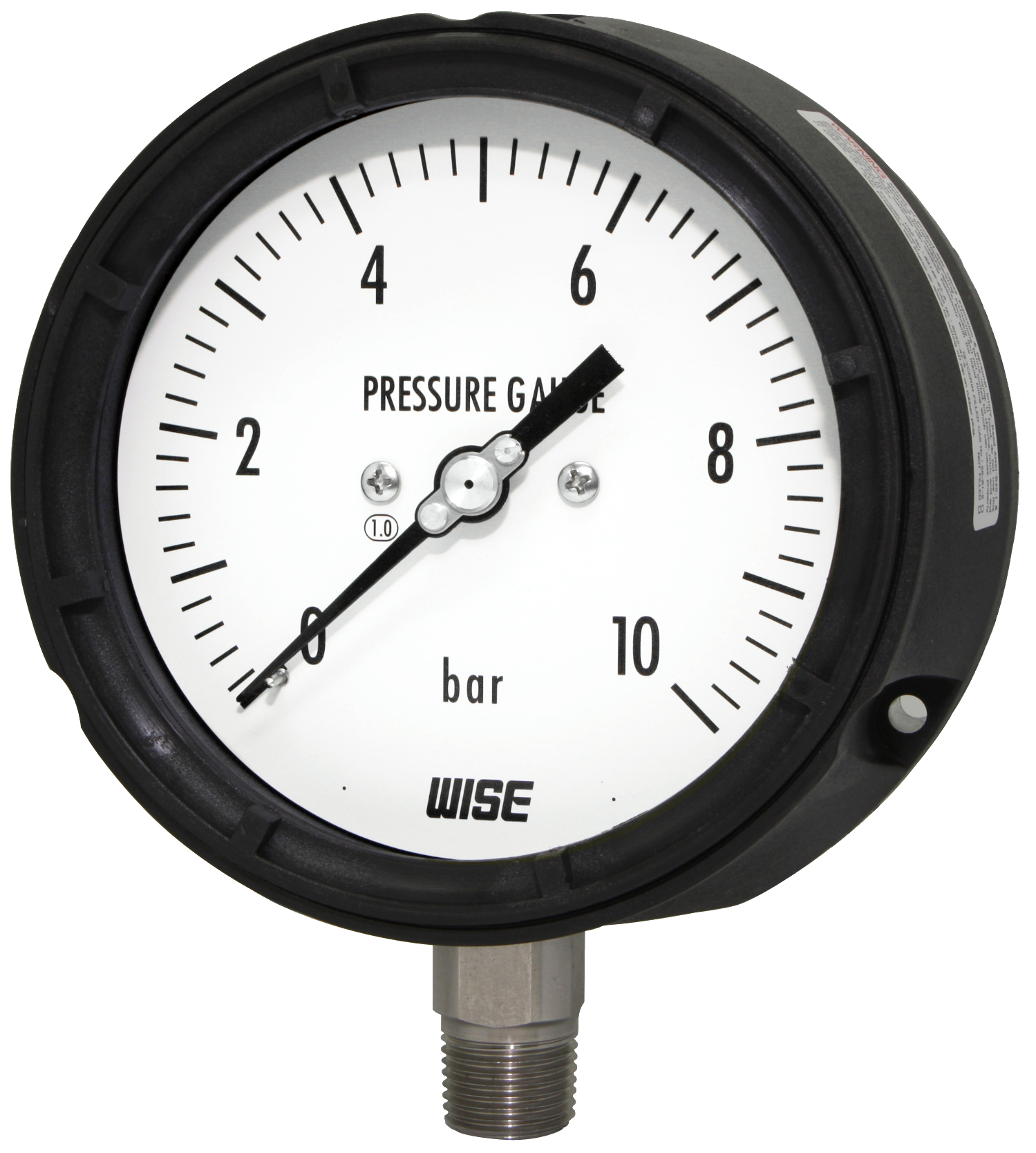

P359 safety pattern pressure gauge comes with 4½" thermoplastic case for corrosive environment and heat resistance. Its solid front and blowout back case are designed to meet the safety requirements.

Nominal diameter 125 mm (4½")
Accuracy ±0.5 % of full scale
±1.0 % of full scale
Scale range (MPa, kPa, bar) -0.1~ 0 to 0 ~ 200 MPa
Working pressure Steady : 75 % of full scale
             100 % of full scale
Over range protection : 130% of full scale
Working temperature Ambient : -40 ~ 65 ℃
               -20 ~ 65 ℃ (With glycerin filling)
               -40 ~ 65 ℃ (With silicone filling)
Fluid : Max. 200 ℃
          Max. 100 °C (With glycerin filling)
          Max. 100 ℃ (With silicone filling)
Degree of protection EN60529/IEC529/IP67
Temperature effect Accuracy at temperature above and below the reference temperature (20 ℃) will be effected by approximately
±0.4 % per 10 ℃ of full scale

Standard features

Pressure connection Stainless steel (316SS)
Element Stainless Steel (316SS)
<10 MPa : C type bourdon tube
≥10 MPa : Helical type bourdon tube
Case Black glass reinforced thermoplastic (PBTB) Solid front, Blow-out back
Turret style case with built in rear flange lugs
Window Polycarbonate
Movement Stainless steel
Dial White aluminium with black graduations
Pointer Black painted aluminium alloy
Zero adjustment Internal
Process connection ⅜", ½" PF, NPT and PF
Certificates Pressure equipment directive (2014/68/EU) Annex III Module H
ATEX Ex II GD c IIB TX
Option Zero adjustment : External
Window : Safety glass
Pressure connection and element : Monel
