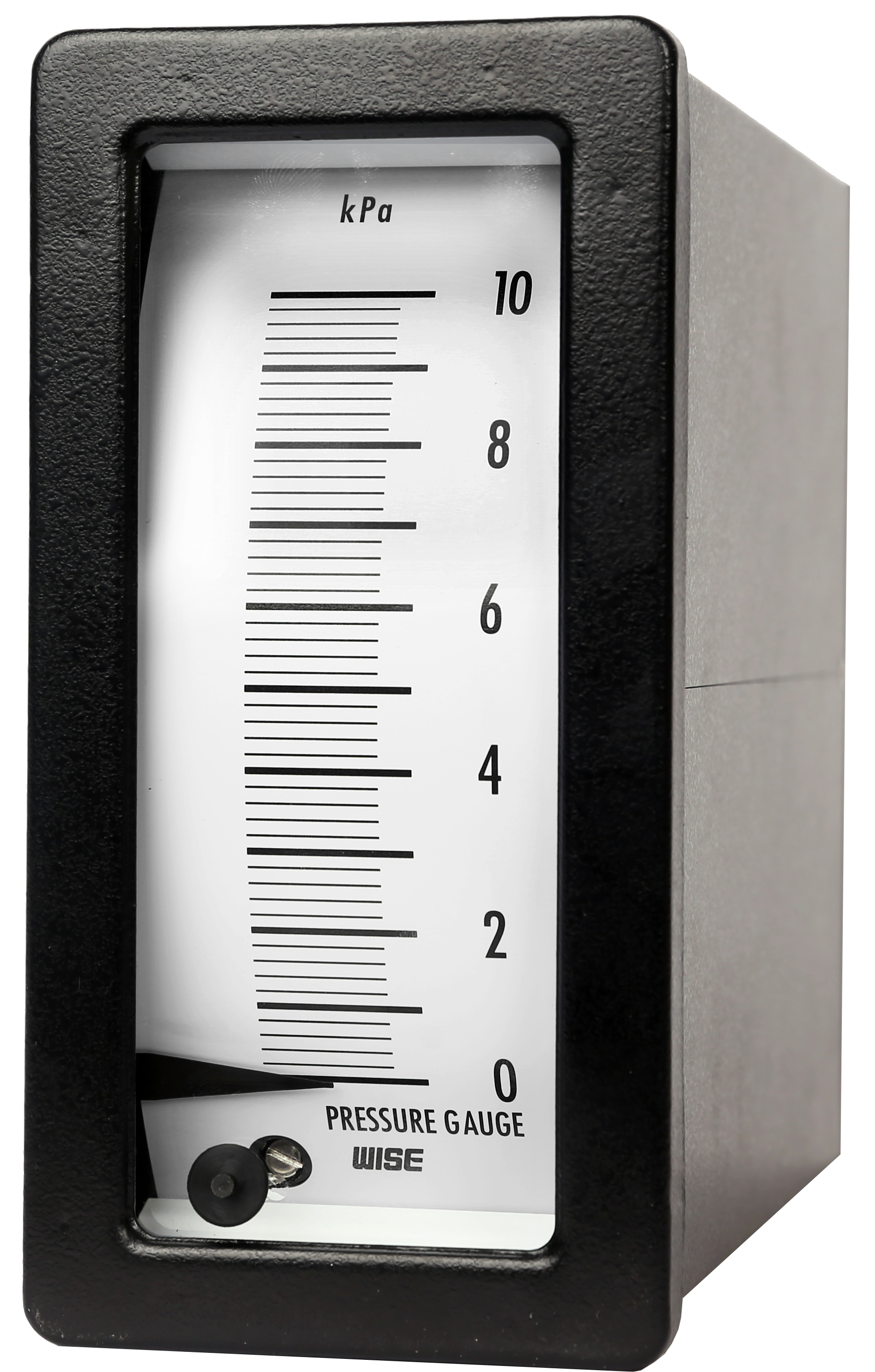

P410, P420 Series_Draft gauge

P410, P420 Series

Service intended

P410 and P420 series are designed to measure low, vacuum or compound pressure. These series are available in panel mounting.

Nominal diameter 192 (W) x 96 mm (H) (P type)
96 (W) x 192 mm (H) (R type)
Accuracy ±2.0 or ±3.0 % of full scale
Scale range (MPa, kPa, bar) Vacuum : -1 ~ 0 to -0.5 ~ 0 kPa
Compound : -0.2 ~ 0.2 to -5 ~ 5 kPa
Pressure : 0 ~ 0.5 to 0 ~ 10 kPa
Working pressure Steady : 75 % of full scale
Over range protection : 130% of full scale
Working temperature Ambient : -20 ~ 65 °C
Fluid : Max. 100 °C
Temperature effect Accuracy at temperature above and below the reference temperature (20 ℃) will be effected by approximately
±1.0 % per 10 ℃ of full scale

Standard features

Pressure connection Stainless steel (316SS)
Element Stainless steel (316L SS)
Case Black finished steel : P410
Black finished stainless steel (304SS) : P420
Window Safety glass
Movement Brass
Dial White aluminium with black graduations
Pointer Black painted PBs2 alloy
Process connection ⅜", ½" PF, NPT and PF
