: Indicating and Switch

Service intended

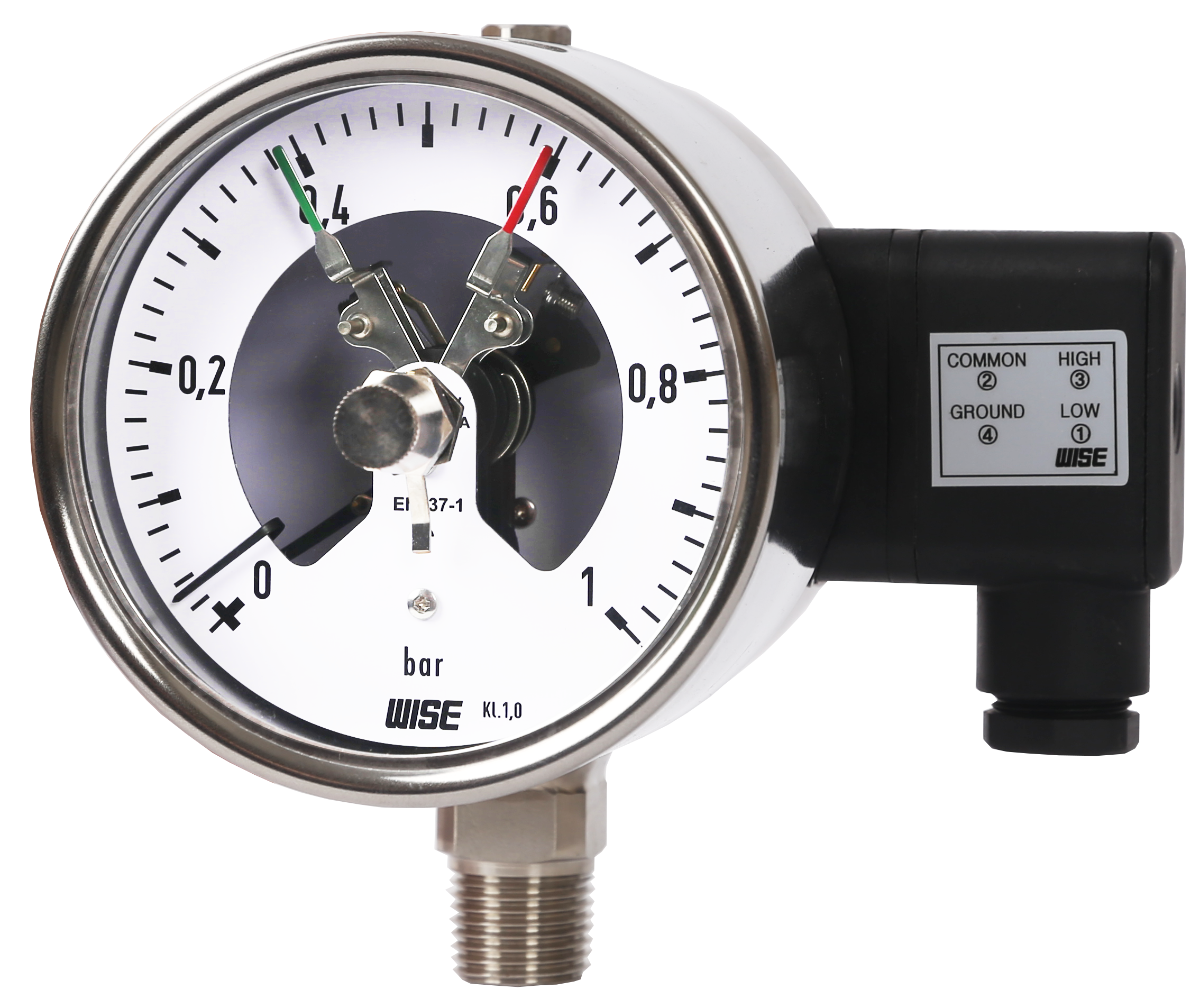

P520 series are designed for a local reading of measured pressure and equipped with the inductive contact block which allows all the combinations of contacts to be used. The contact block is mounted on the dial. The window is fitted with a knob for external adjustment of the setpoints.

Nominal diameter	100 mm
Accuracy	±1.0% of full scale
Scale range (MPa, kPa, bar)	-0.1 ~ 0 to 0 ~ 200 MPa
Working pressure	Steady : 100 % of full scale Over range protection : 130 % of full scale
Working temperature	Ambient : -40 ~ 65 °C Fluid : Max. 200 °C
Degree of protection	EN60529/IEC529/IP67
Temperature effect	Accuracy at temperature above and below the reference temperature (20 ℃) will be effected by approximately ±0.4 % per 10 ℃ of full scale

Standard features

Pressure connection	Stainless steel (316SS)
Element	Stainless steel (316SS) <10 MPa : C type bourdon tube ≥10 MPa : Helical type bourdon tube
Case	Stainless steel (304SS)
Cover	Stainless steel (304SS) Bayonet type
Window	Safety glass
Movement	Stainless steel
Dial	White aluminium with black graduations
Pointer	Black painted aluminium alloy
Conduit connection	M20 x 1.5
Process connection	⅜", ½" PT, NPT and PF
Certificates	Pressure equipment directive (2014/68/EU) Annex III Module H
Option	Damping movement
