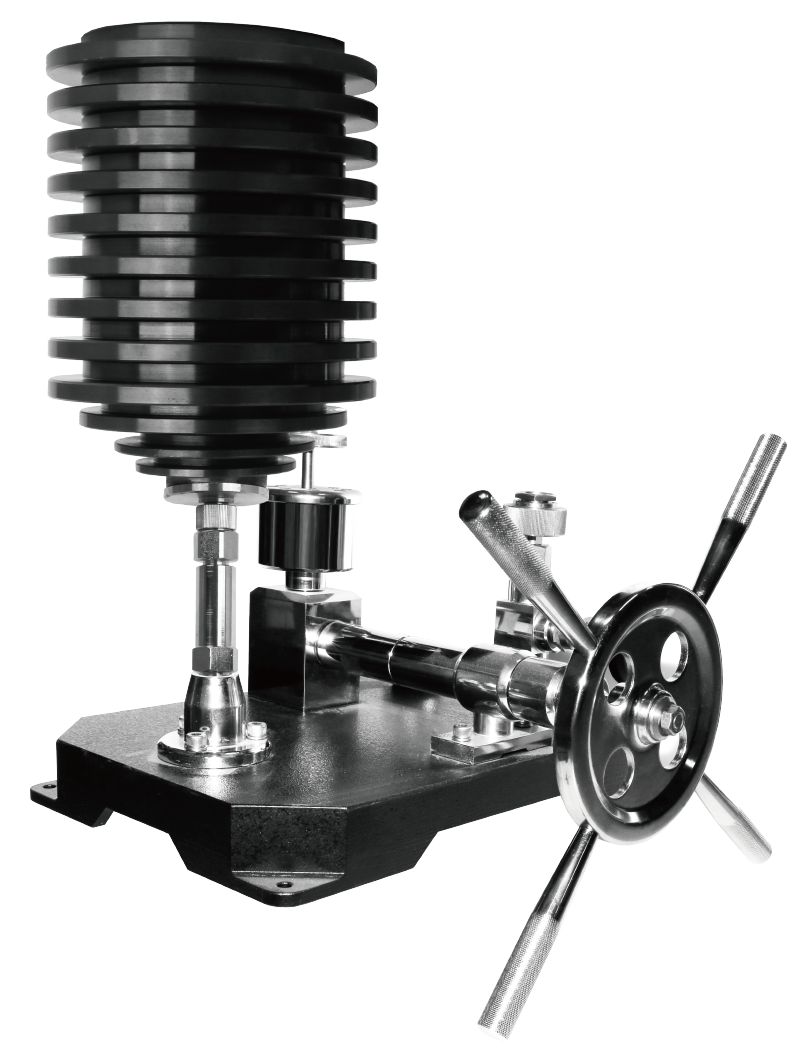

Dead weight tester (Up to 100 MPa)_P912, P913, P914 series

P912, P913, P914 series

Service intended

These series are designed to be used for gauge calibration. Operating range of these series is available up to 100 MPa. It is designed to perform the tasks such as setting, testing, and repairing pressure measurement.

Dimensions Base 400 mm (W) x 178 mm (H) x 280 mm (D) excluding hand wheel
Color Black
Reservoir These series have a centrally isolated mounting valve and a transparent cover which can be sealed in order that tester can be moved without oil leakage.
Screw pump The use of a large diameter ram eliminates the need for a priming pump
Accuracy 0.04 %
Piston cylinder unit The tester is fitted with an oil reservoir, this is linked to the piston cylinder unit.
A stop valve is provided to prevent excessive pressure driving the piston out of the cylinder.
