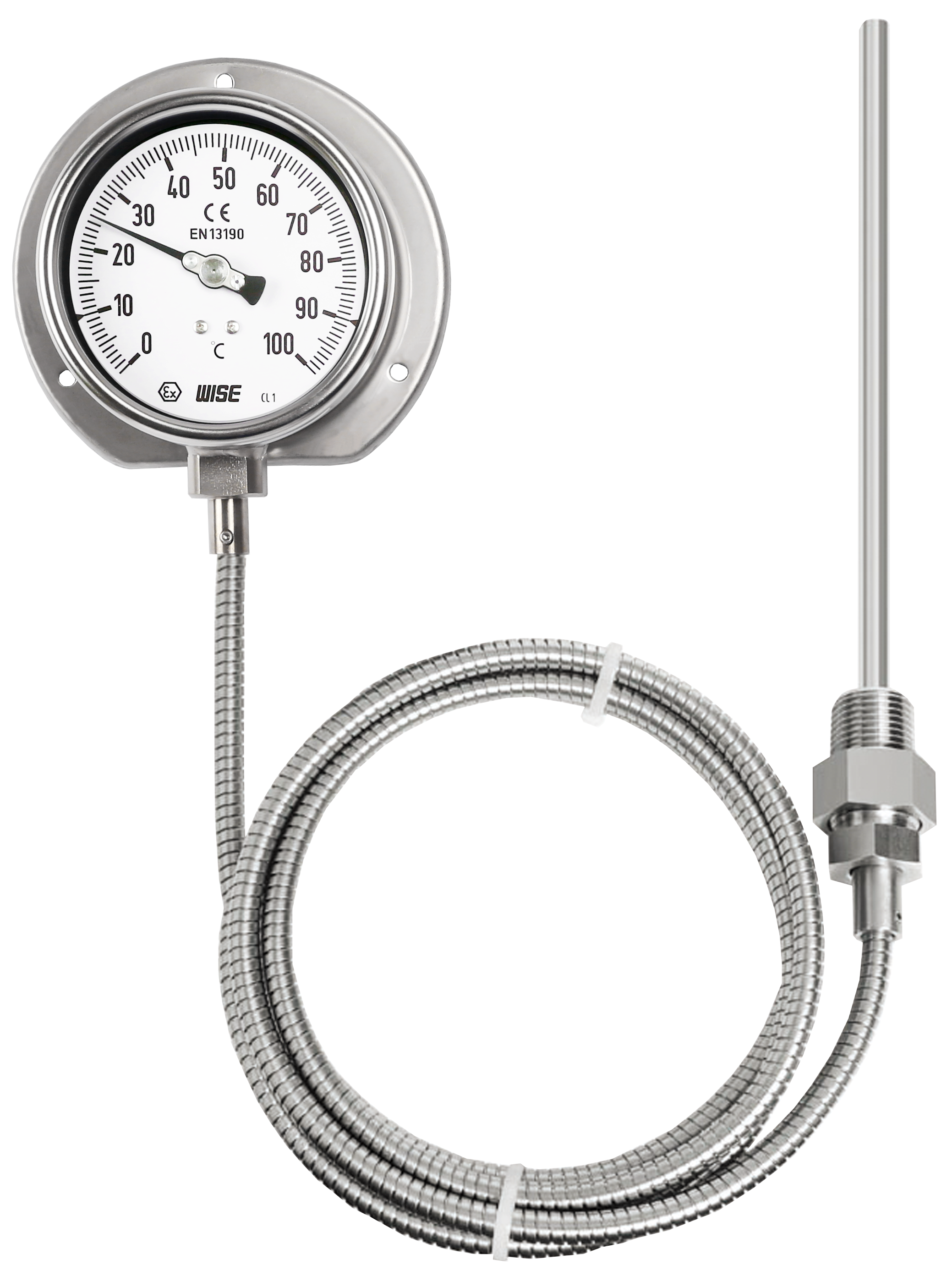

T230_Euro gauge Remote reading thermometer

T230

Service intended

This thermometer is used for measuring temperature of corrosive and non-corrosive fluid in all industries. It operates in aggressive and non-aggressive environment. Linear dials and temperature compensate line assure an accurate temperature indication at varying ambient conditions.

Nominal diameter 100 and 160 mm
Accuracy ±2.0 % of full scale
Measuring system (SAMA class ⅢB) Organic gas : 0 ~ 200 °C
Inert gas : -200 ~ 700 °C
Working range Maximum scale value
Degree of protection EN60529/IEC529/IP67 (100 mm)

Standard features

Location of stem and mounting Bottom connection, surface, case mounting
Lower back connection, flush, case center mounting
Case 304SS
Cover 304SS
Bayonet type
Window Tempered safety glass
Capillary Capillary : 1.6/0.2 mm, 316SS
Armored : 7.5/5.5 mm, 304SS
Dial White aluminium with black graduations
Pointer Black painted aluminium alloy
Stem 8.0, 10.0 and 12.0 mm
316SS and 316L SS
Stem, process connection ⅜", ½", ¾" PT, NPT and PF
Option ±1.0 % of full scale
Window : Safety glass
Special range : 0 ~ 700 ℃
Certificates ATEX II 2G Ex h IIC T6…T1 Gb /
ATEX II 2D Ex h IIIC T85ºC…T450ºC Db
