Service intended

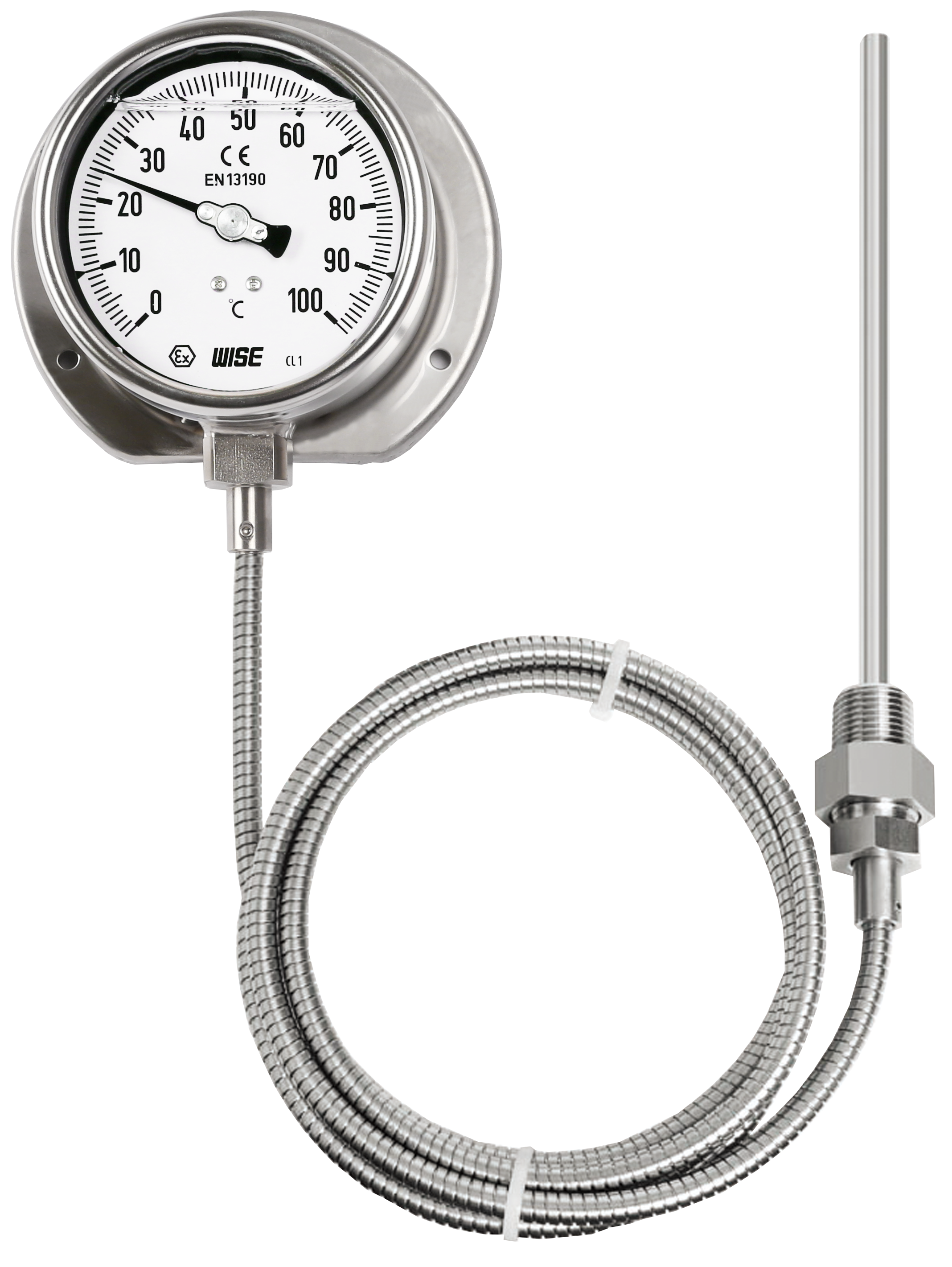

Liquid filled thermometer is used for measuring temperature of corrosive and non-corrosive fluid in all industries. It operates in aggressive and non-aggressive environment. Linear dials and temperature compensate line assure an accurate temperature indication at varying ambient conditions.

Nominal diameter	100 and 160 mm
Accuracy	±2.0 % of full scale
Measuring system (SAMA class ⅢB)	Organic gas : 0 ~ 200 °C Inert gas : -200 ~ 700 °C
Working range	Maximum scale value

Standard features

Location of stem and mounting	Bottom connection, surface, case mounting Lower back connection, flush, case center mounting
Case	304SS
Cover	304SS Bayonet type
Capillary	Capillary : 1.6/0.2 mm, 316SS Armored tube : 7.5/5.5 mm, 304SS
Window	Tempered safety glass
Dial	White aluminium with black graduations
Pointer	Black painted aluminium alloy
Stem	8.0, 10.0 and 12.0 mm 316SS and 316L SS
Filling liquid	Glycerin or silicone
Stem, process connection	⅜", ½", ¾" PT, NPT and PF
Option	Special accuracy, ±1.0 % of full scale
Certificates	ATEX II 2G Ex h IIC T6…T1 Gb / ATEX II 2D Ex h IIIC T85ºC…T450ºC Db
