: Pressure Switch

Service intended

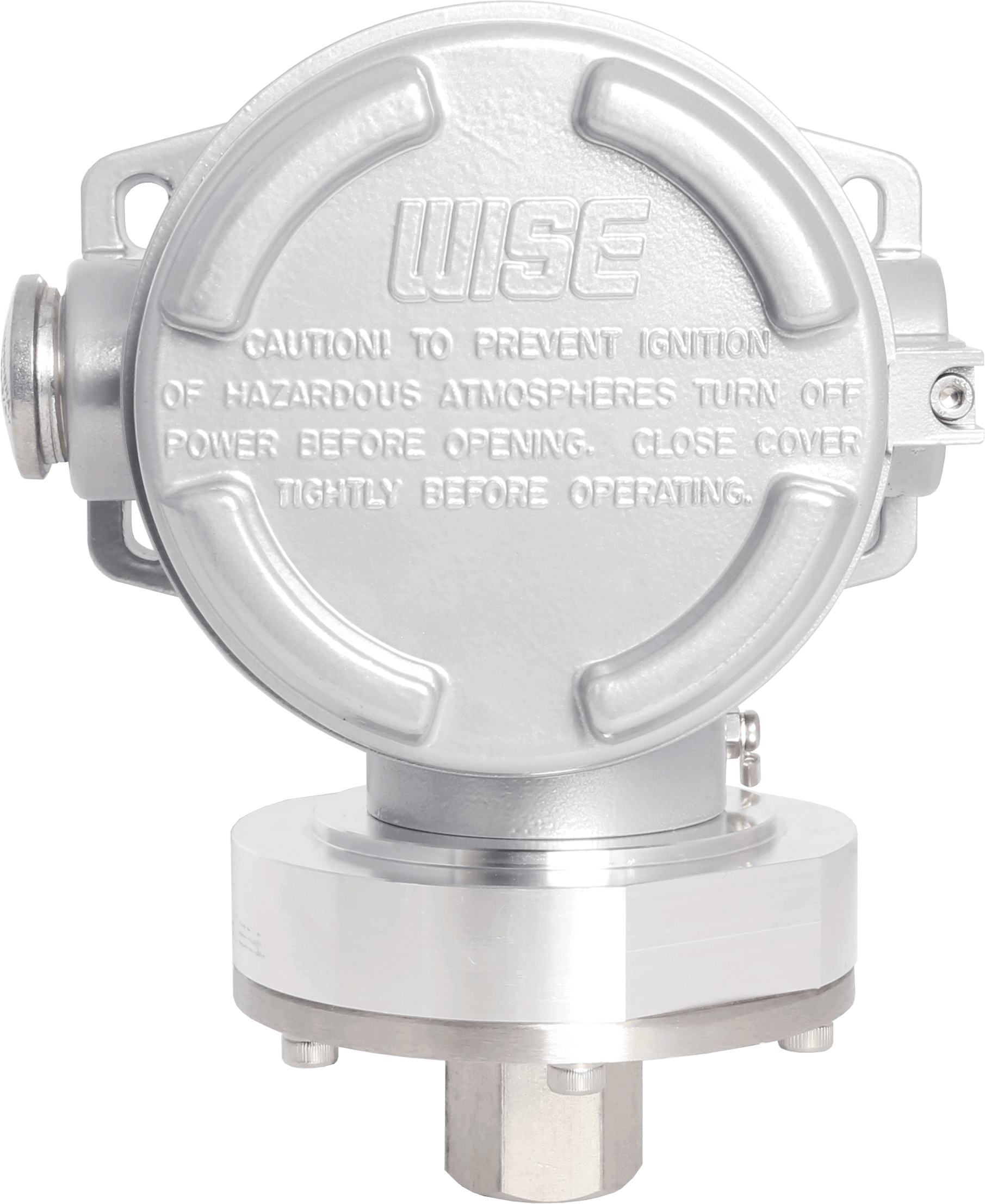

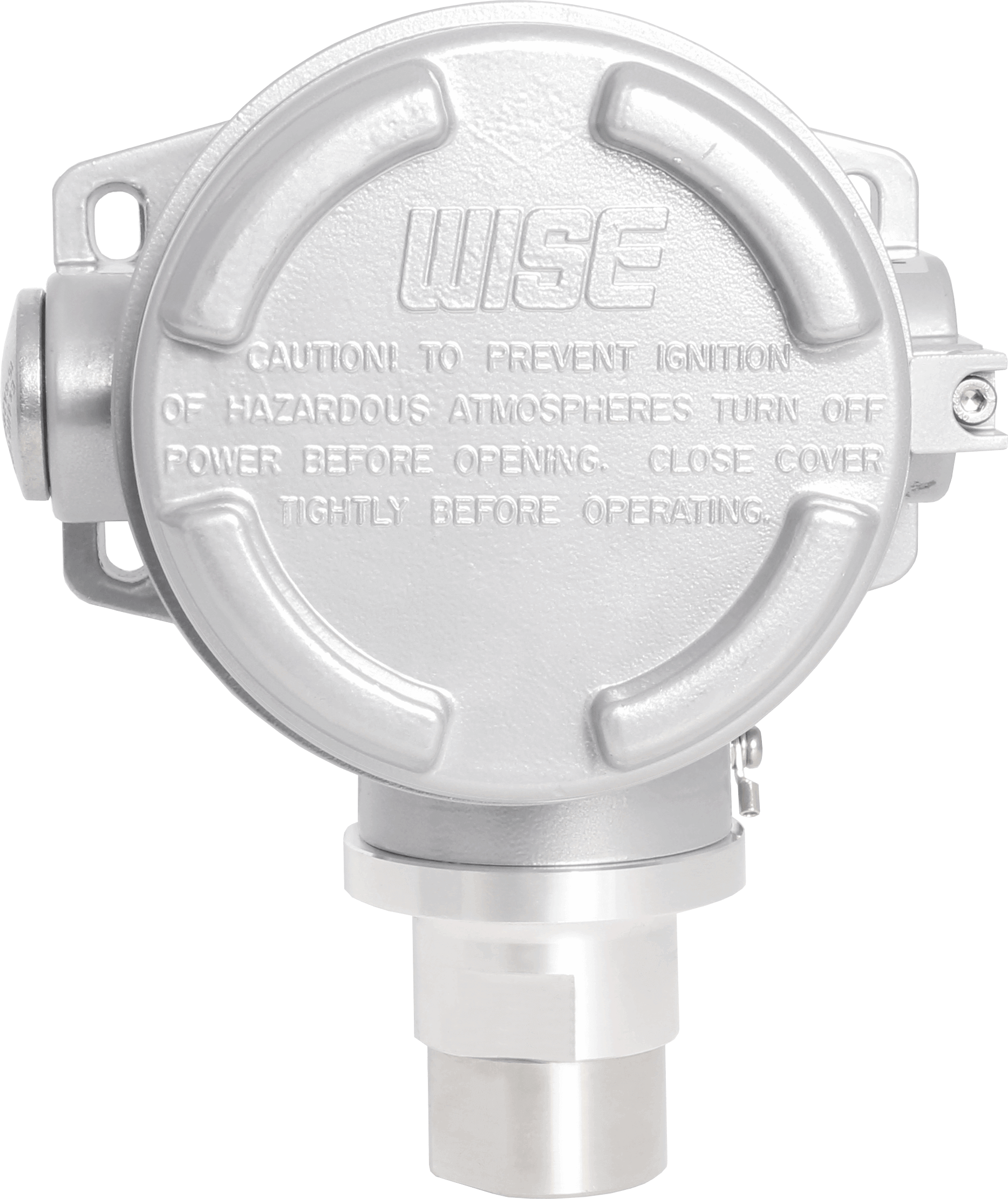

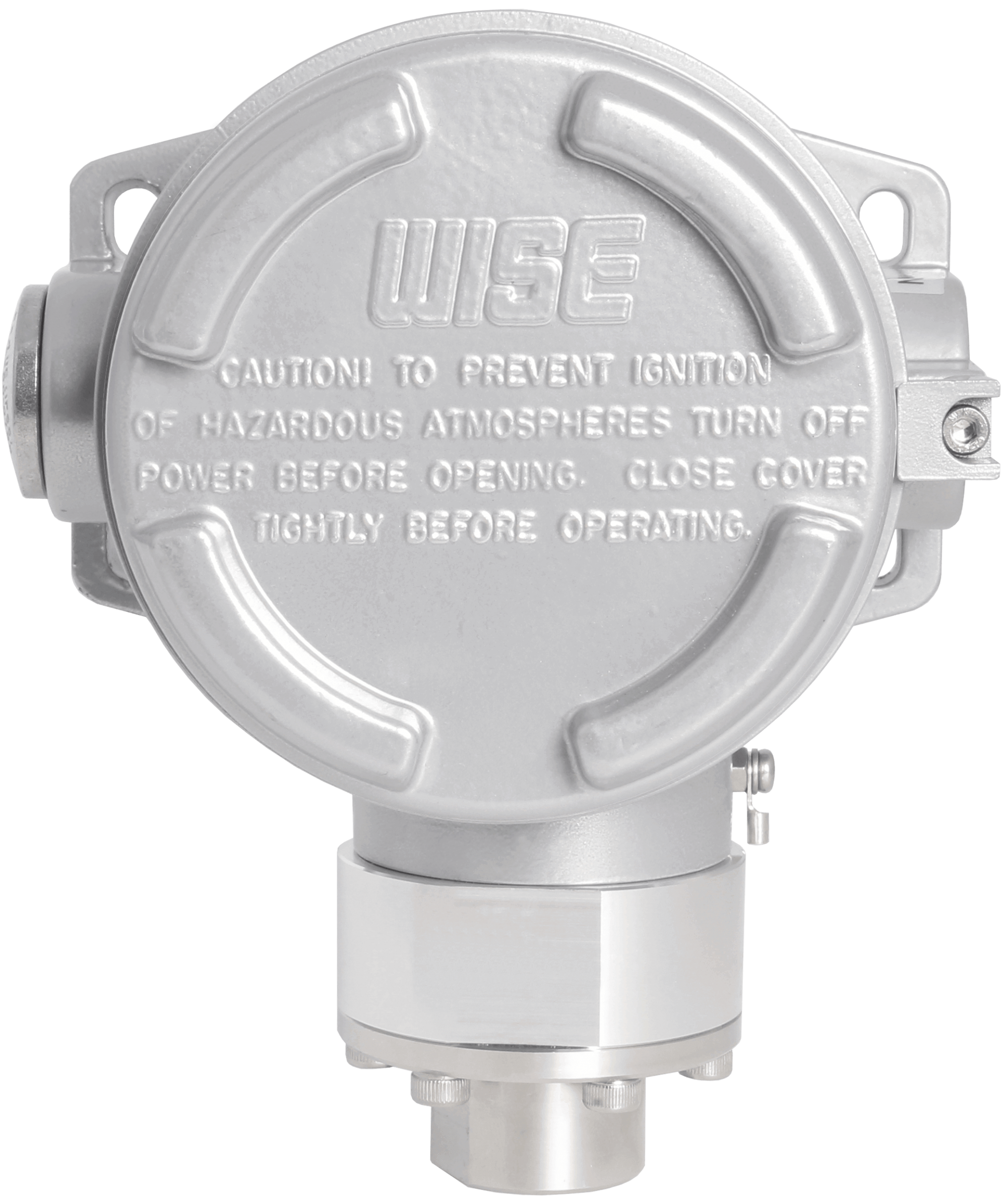

P954 diaphragm type pressure switch can be used in a variety of process lines. Internal micro switch is operated by pressure of
various fluids, such as atmospheric pressure and water pressure. The pressure sensing part is a force balanced and piston
actuated assembly.

Fluid	Gas and oil
Repeatability	±0.5 % of adjustable range ±1.0 % of adjustable range
Adjustable rangee (mbar, MPa, kPa, bar)	-0.9 to 275 bar
Dead band	Fixed One SPDT : Approx. 5 % of adjustable range Two SPDT : Approx. 10 % of adjustable range
Working temperature	· Ambient : -25 ~ 65 °C (O-ring material : Viton) -40 ~ 65 °C (O-ring material : Silicone) · Fluid : Max. 100℃
Degree of protection	EN60529/IEC529/IP67

Standard features

Pressure connection	Stainless steel (316SS) Monel and Hastelloy-C
Element	Stainless steel (316L SS) Monel, Hastelloy-C
Case and cover	ALDC 12.1 Silver gray finished aluminium
Process connection	½" NPT (F)
Contact	Micro contact type One SPDT (P954-1B3) Two SPDT (P954-2B3)(Only available with single setpoint)
Contact rating	SPDT contact rating AC 125 V / 250 V, 15 A DC 125 V, 0.5 A for resistance load DC 125V, 0.03 A for inductive load
Conduit connection	¾" NPT (F)
Certificates	ATEX II 2G Ex db IIC T6 Gb ATEX II 2D Ex tb IIIC T85°C Db IP67 IECEx Ex db IIC T6 Gb IECEx Ex tb IIC T85°C Db IP67 KCS Ex db IIC T6 Gb KCS Ex tb IIC T85°C Db
